DESCRIPTION

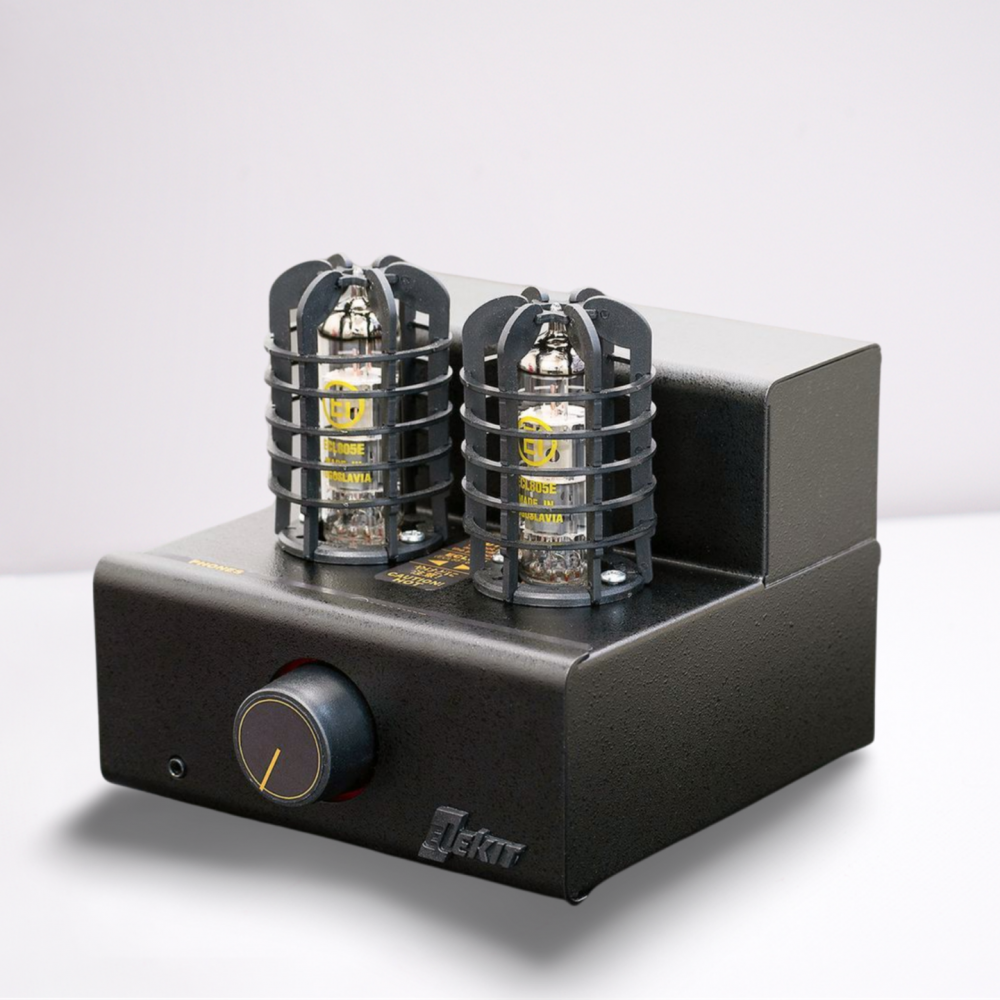

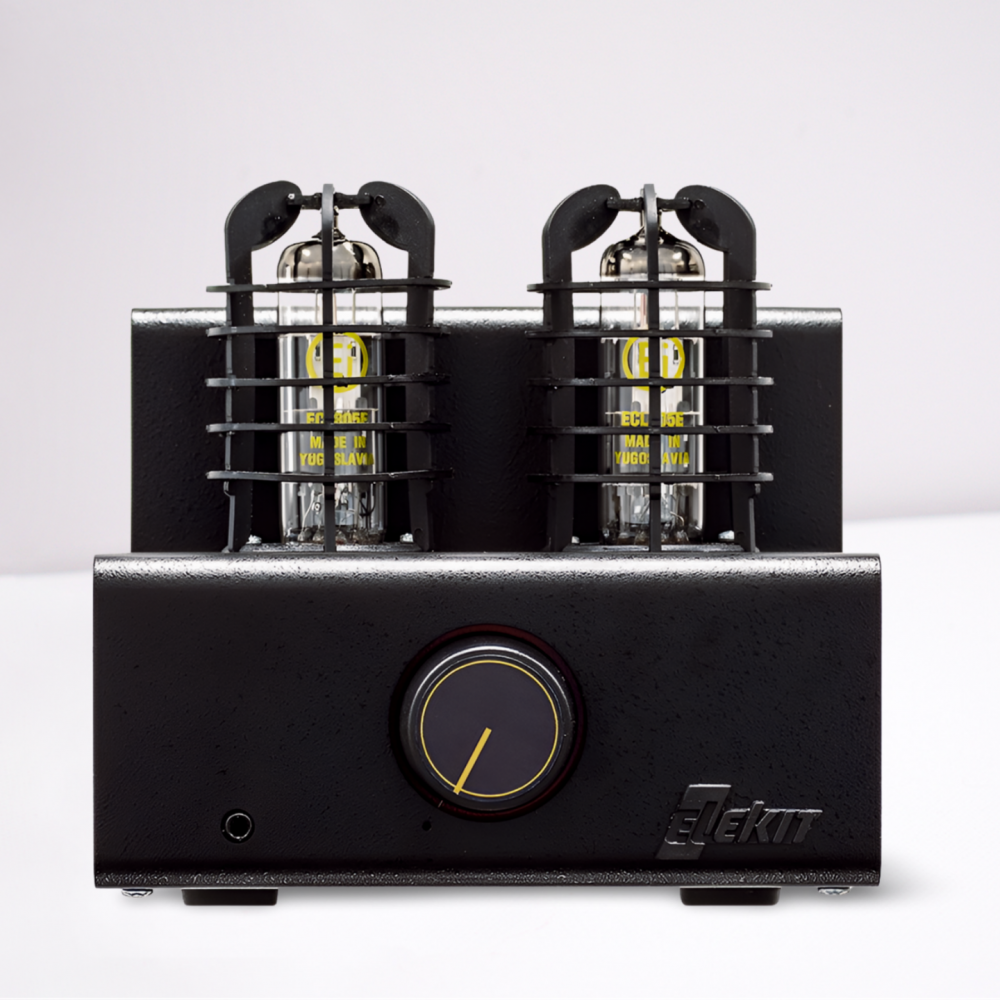

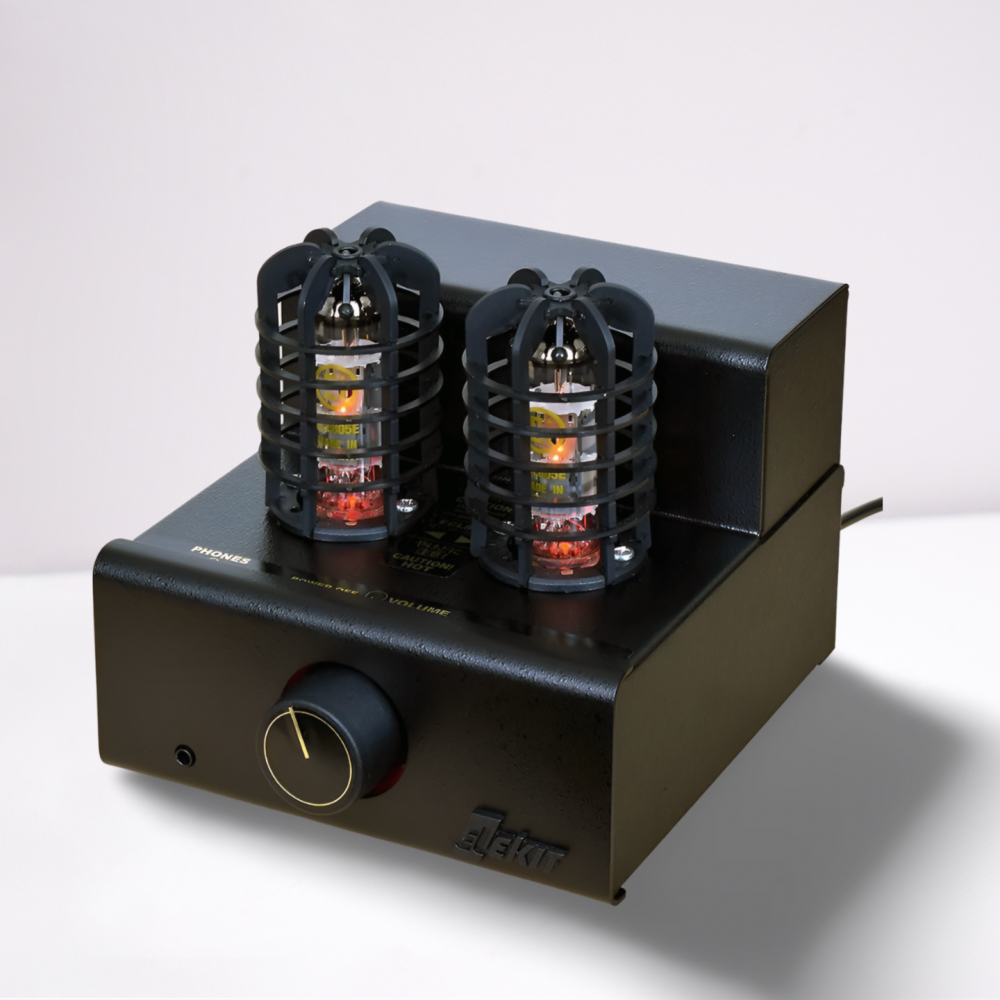

A compact body with a headphone jack on the front panel – you can enjoy its large scale sound not only from speakers but also from headphones / earphones. It is a successor of TU-8100 model with slight improvements and black chassis.

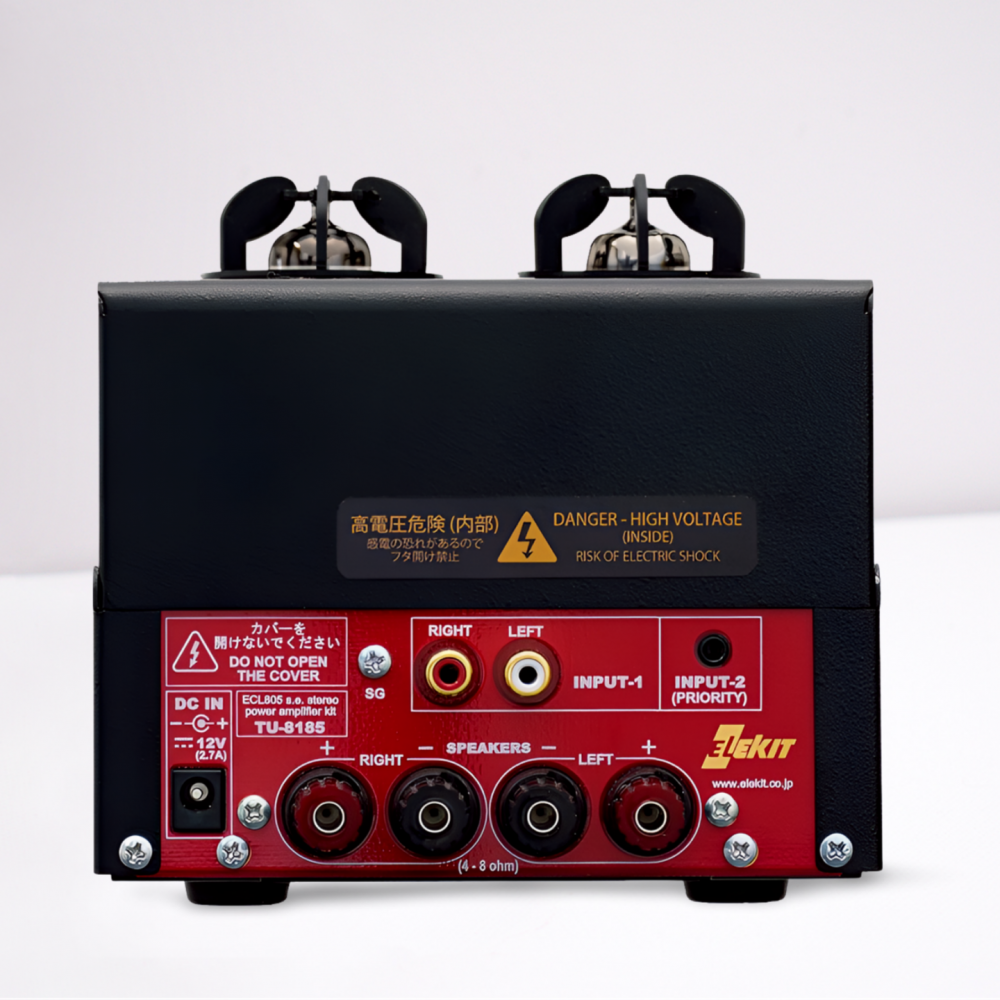

Two types of input terminals
The amp is equipped with a RCA pin jack for LINE IN and a stereo mini jack to which you can connect a mobile phone or a portable music player.
Headphone feature
Enjoy music either from speakers or headphones. The amp corresponds to headphones with impedance between 8 to 600ohm. Adjust the output level by changing the positions of jumper caps.

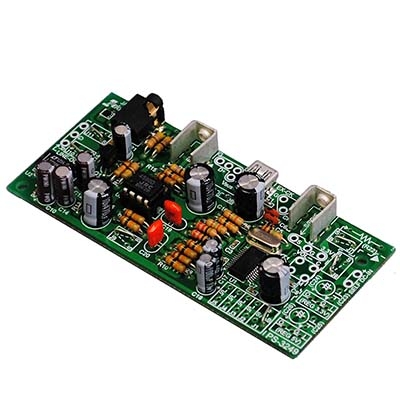

Optional USB-DAC module PS-3249R
ELEKIT USB-DAC module PS-3249R can be mounted inside the amp, which enables connecting the amp to a digital sound source in your PC.
Kit includes 2 x ECL805E tubes!
TECHNICAL SPECIFICATION
VACUUM TUBES | ECL85 (6GV8) x 2 |
RATED OUTPUT | 2 x 2W (8Ω load, THD 10%) |
RATED INPUT | 350 mV rms |
FREQUENCY RESPONSE | 25 – 50000 Hz (-3 dB) |
RESIDUAL NOISE | 35 µV rms (IHF-A 8Ω load) |
SPEAKERS IMPEDANCE | 4 – 8 Ω |
HEADPHONES IMPEDANCE | 8 – 600 Ω |
OUTPUT TERMINALS | Binding terminals (banana plug usable) |
HEATER POWER | DC Heating |
B-POWER | DC-DC Inverter boost type |
SUPPLY VOLTAGE | DC 12V ~2,7 A |
AC ADAPTER | World compatible 100 – 240V / 12V @ 50 W switching power supply |
DIMENSIONS | W 142 mm x H 136 mm x D 178 mm (including projections) |
WEIGHT | Approx. 1,8 kg Assembled, excl. AC adapter |
It is possible to install inside chassis the USB-DAC kit PS-3249 (purchased separately) which gives the possibility to utilise direct digital output from computer systems. | |
Specification of the product are subject to change without prior notice. Colors of the product may look different than presented on pictures. |
