AMI Scan Control Unit model G200, H, I, Jterug naar categorie

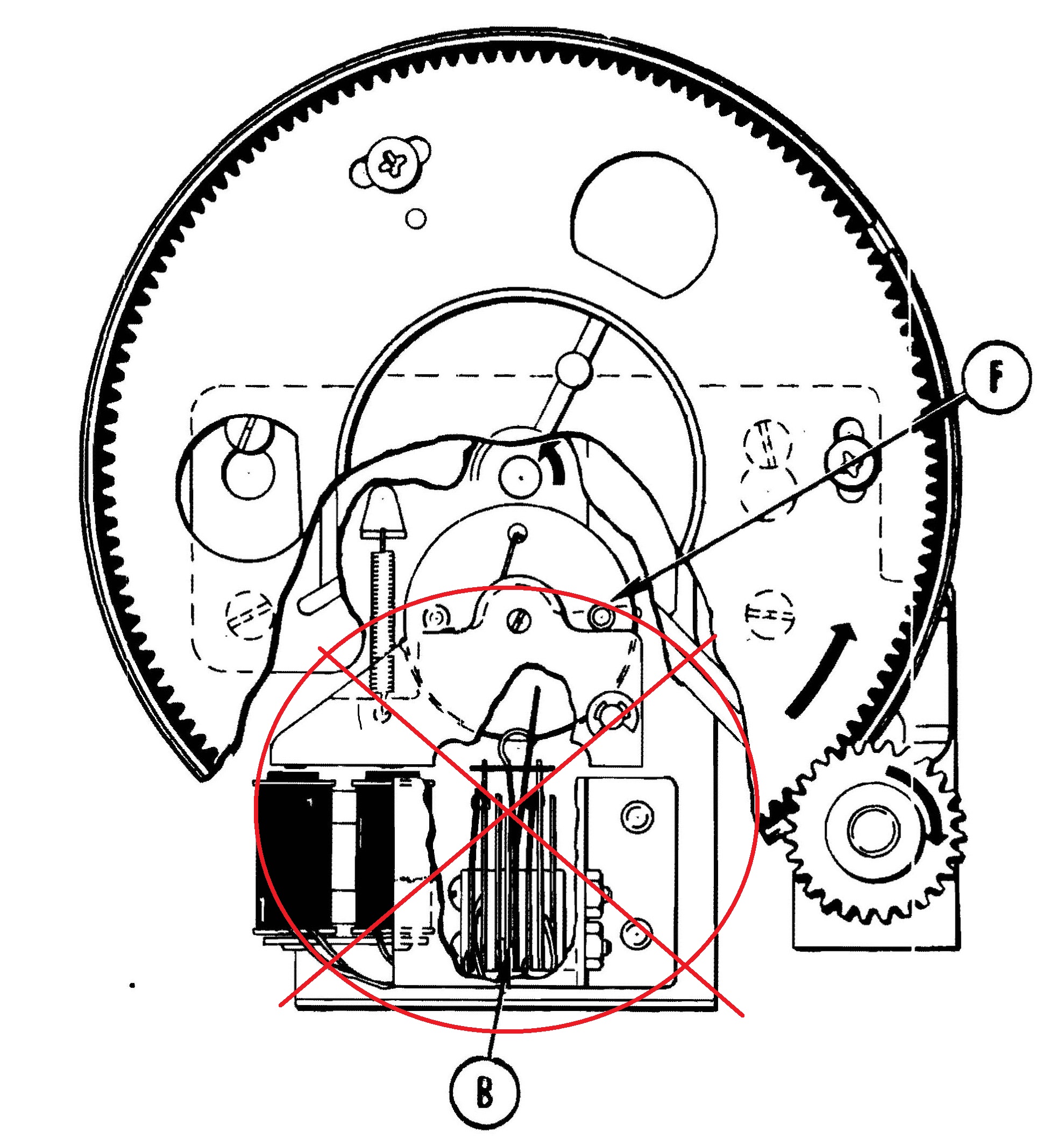

The original scan switch fitted to AMi jukeboxes starts the record basket rotating when ever a selection is made. It also scans (rotates) one complete revolution when the record finishes searching for any other selections.
Located behind the popularity meter on AMi models G, H, I and J, it was never very reliable. So not only difficult to access but also to adjust correctly. The typical problem symptoms are turntable failing to start (or stop), the record basket continuously rotating after a record is played or stops but then ‘jerks’ every now and then.
This module replaces the factory fitted scan switch and bracket assembly. It will always rotate the record basket one full revolution before and after playing a record even if the A.C. mains power has been interrupted, just like the original.
It connects to the same wiring loom and can be sited on top of the record changer where there is better access. The scan time can be adjusted from approximately 15 to 30 seconds. Once fitted the module requires no other adjustment or maintenance. Fully suppressed minimising audible clicks when in operation. The wiring connections are by screw terminals – no soldering required. Insyallation sheet is included.
